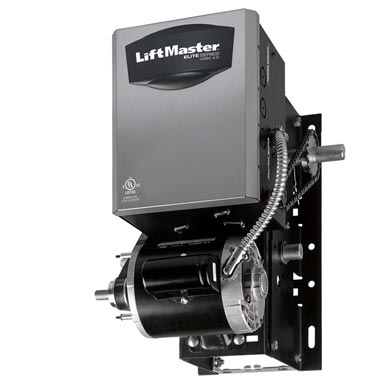

Industrial-Duty Jackshaft Operator with Internal Door Lock Sensor

Model DJ is an industrial-duty jackshaft operator with an internal door lock sensor. It features a removable hinged electrical box cover, a continuous-duty high-starting torque motor, industrial ball bearings on the output shaft and a universal-mount frame design.

LOGIC 4.0 TECHNOLOGY (L4)
Added Value

• Built-in 3-channel, 315MHz radio receiver accepts up to 23 Security+® or unlimited DIP switch remotes. 3-button remotes can be programmed for OPEN/CLOSE/STOP operation
• Maintenance Alert System™ establishes a routine maintenance schedule based on the number of cycles or calendar date. Includes self-diagnostic system that allows you to troubleshoot up to eight different error codes
• Timer-to-Close allows programming in 1-sec or 15-sec increments and permits timed automatic door closure after the door reaches the full open position; requires monitored photo sensors, either CPS-U or CPS-UN4, or a 4-wire edge, using the CPS-EI edge interface
• Thermal motor overload can be easily reset from the 3-button floor level control station

Reliability & Programming Simplicity

• Switchless motor eliminates stuck start switch and motor malfunctions on single-phase operators
• All high-voltage connections have been removed from the board for safety and ease of service
• Diagnostic LEDs speed installation and troubleshooting
• Motor direction jumper lets you change motor direction by simply moving a jumper

Available Plug-in Options for Logic 4.0 (L4)
Auxiliary Contact: Used to operate security, warning, heating or other 5V to 240V devices.  Features both normally open and closed contacts that actuate in conjunction with limit switches.

TLS1CARD: Provides seven field-selectable modifications, including six door traffic control options. Combines with Logic 4.0's standard Timer-to-Close feature to offer timed, sequenced activation of warning lights, sounders, and other devices (sold separately) that can be operated via dry contact closure.

CPS3 or CPS3-N4 Option: Enables the addition of a second set of photo-eyes.

Mechanical Reversing Contactor Circuit (M): (115V, 208/230V, 460V, 575V, 24V NEC Class 2 Circuit with 40VA transformer) Industrial linear contactor provides significantly longer control runs than conventional contactors.

STANDARD FEATURES
Motor: Continuous-duty high-starting torque motor with instant reverse and overload protection.  Available in 1/3 and 1/2; single- or three-phase. Removable without affecting limit switch settings.

Drive Reduction: First-stage heavy-duty 5L V-belt; second and third stages #48 chain; #50 drive chain.

Emergency Disconnect: Easy emergency manual operation using an electrically interlocked floor level disconnect.

Wiring Type: All operators are factory preset to C2 wiring providing momentary contact to open and stop, with constant contact to close; D1 and E2 wiring are also available. Momentary contact to close (B2 wiring), T, TS, and FSTS wiring can be activated with the use of CPS-U, CPS-UN4, or CPS-EI safety edge interface. The operator is pre-wired to accept a sensing device, photoelectric sensors, radio controls and most types of access control equipment.

External Radio Control Terminal: Quick, convenient connections for retrofitting or adding radio controls on logic or mechanical operators.

Bearings: Industrial ball bearings on a 1" output shaft; heavy-duty oil-filled iron bearings on reduction shafts.

Friction Clutch: Adjustable, helps protect against major damage to door and operator should the door meet an obstruction.

Construction: NEMA 1 type electrical box, heavy-duty 11-gauge steel frame with durable powdercoat finish, all reduction sprockets drilled and pinned to shafts.

Push Button Station: 2-button station for OPEN/CLOSE functions is standard with D or D1 wiring.  3-button station is standard with B2 or C2 wiring.

PosiLock® Mechanical Brake System: Self-locking mechanical reduction system that functions as a holding brake.
Warranty: 2-year warranty.
CONTROL ACCESSORIES
Primary Monitored Entrapment Protection: The presence of primary entrapment protection is required for all modes and features beyond basic constant-pressure-to-close performance. Primary entrapment protection devices are monitored continuously to insure safe operation of the door and limit door operator functionality should an obstruction be detected or in the event of device failure. LiftMaster Monitored Entrapment Protection devices, CPS-U, CPS-UN4 and CPS-EI, are designed to work in conjunction with LiftMaster commercial door operators to provide enhanced door safety and a broad range of modes and features to end users. Either monitored photo-sensor or monitored 4-wire sensing edge (in conjunction with the CPS-EI Edge Interface) protection may be selected, but one must be detected by the LiftMaster Logic 4.0 or Medium-Duty Logic circuit board in order to unlock full functionality. Ancillary Entrapment Protection: (optional) LiftMaster Retro-Reflective Commercial Protector System® photo sensors, 2-wire non-monitored sensing edges and pneumatic sensing edges are considered secondary entrapment protection and may be used to supplement primary entrapment protction or basic constant-pressure-to-close.
2-Position Keylock: (flush mount) Ideal for use with the DJ operator. Provides open/close operation with spring to center (Model 02-109).

Emergency Egress Device: Faceplate mounts flush on wall and contains pull handle to disconnect operator from grille. Allows the door to be opened manually or by spring tension.
